- Simple, intuitive operation through  procedure templates, minimum
  Operator training
- Dust and splash-proof touchscreen
- Modern Design & Technology: linear guidance technology with stepper motor
  ensure high precision in distance and speed
- Documented exporting the resulting data with test parameters and details
  to samples on USB in CSV format
- Two user access levels: supervisor and operator.
  Access level can be protected with a password
- Independent, fully operational system,
  requires no computer and no software installation

GMP / GLP:
- Two user access levels: supervisor and operator.
   Access level can be protected with a password.
- Print of results + product and test information
   to a printer via RS232

Function

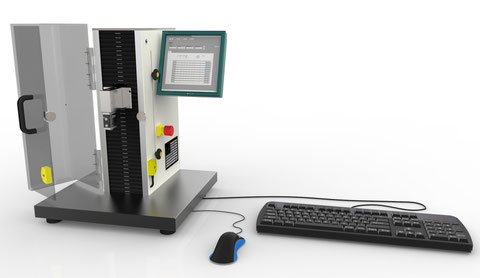

This testing machine was developed especially for studies of dental materials . The main focus is compressive strength and tensile tests.
The testing machine is available for the force range 0.5 and 1 KN < 0.2 % accuracy (
Factory calibration / ISO-calibration ) or with precision class 0.5 according to ISO 376 / DAkks-DKD -R 3-3. The cutoff frequency / sampling rate is 320 Hz. The universal testing machine allows test speeds from 0.5 to 600 mm / min. The maschine has a speed control. The testing machine is operating via touch screen. The maximum / peak value of the test is indicated, which is sufficient for the most standards for dental materials.
Due to the compact construction, the device is ideally suited for laboratory use .
ISO-Standards (speed, cross section) can be selected and the corresponding compressive stress is calculated.

Spezification

Workspace    120 x 120 x 300
Test Stroke without Testtool   300 mm (optional Extension on request)
Standard Function   Speed / Force Control,
manuel Positioning with TouchScrenn
Load (Tensile/Pressure)   0,5 KN
Speed with Load   0,5 – 600 mm/min
Backward Speed   V max.
Force measurement accuracy   0,2 % of End Value
Power Supply   150W 115/230 VAC, 0,5 kVA, 50/60 Hz
Environmental Conditions   5- 40°C, 20- 80 % Humidity

Dimmension WxDxH

  430 mm x 300mm x 430 mm
Weight   55 Kg
Housing   robust Construction made of Aluminum and V2A
mechanical Construction

Backlash-free Ball Spindle with Servo Motor Drive

mechanical stop of the traverser with adjustable limit switches


Ordering

Test Device with ISO - Calibration   445-010    12.144,- €
Optional
Test Device with ISO 376   445-020
Force Sensor 1 KN   440-010
3-4-Point Bending   440-020
Multipurpose Test Specimens   440-040
Biaxial Test with
precision ball cage leading
  440-050
Tensile Test Plastic Teeth   440-060



Scope of Delivery

1 Test Device
1 Operating Instruction
1 Net wire CEE 16A (5 m)

Conditions of Delivery

Delivery: EXW
Shipping time: by arrangement

Technical changes reserved.

The illustrations may differ from the actual equipment.

All data without obligation and not-binding.
