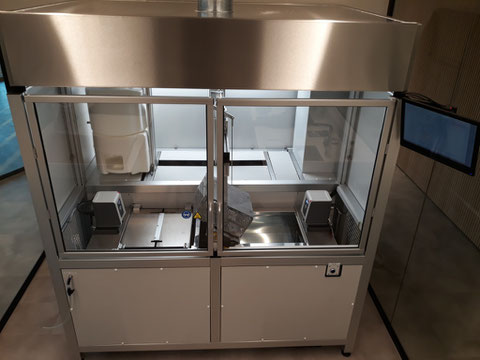

The device allows products to be immersed in two different baths and exposed to different temperatures.
The maximum temperature is 98 °C. The minimum temperature is 5 °C.
The tester is particularly suitable for artificial aging of bottles.
Due to the rotating device of the sample holder, bottles can be filled completely.
Fans are located in the cooling position to cool the specimens to room temperature.
Automatic filling and refilling during the test.
Filling with tap water or also with osmosis water.
Sequences are freely programmable:
- Heating up and cooling down
This phase can be started time-controlled.
- Cold bath with dwell time
- Heat bath with dwell time
- Cooling to room temperature with dwell time
and optional ventilation
The entire process with temperatures and cycle times is stored in csv format.
Remote control and remote monitoring via Ethernet on any PC.
Dimensions (L x W x H) W 1.8 m x D 1.2 m x H 1.7 m
Weight 400 kg
Required floor space 2 m2
Type of test equipment Semi-automatic
Protection class IP 31
Test equipment supply
Power supply: 3 x 230 VAC, 16 A
The maximum load in the basket must not exceed 10 kg.
The device complies with EN ISO 13849-1 category 3 and PL d for safety.
- Cold bath
- Heat bath
- X-Y drive
- Osmosis plant
- Fans for cooling to air
1 Instruction manual
|Temperatur Cycle Test||210-020||38.000,- €|
|Osmosis system||210-022||5.500,- €|
Delivery condition: EXW
Delivery time: by agreement
Technical changes reserved.
The illustrations may differ from the actual equipment.
All data without obligation and not-binding.
The prices quoted are net prices.
