Stain-in-compression and Consistency Test auto ISO 4823-2007

Oral Care Prüfung Test Equipment Zahnbürste Zahnnseide Dentalwerkstoffe Dentalinstrumente Brillen Spritzen Toothpaste manual Toothbrush Powerbrush Toothcleaning interproximal Brush Test Euquipment Zahnbürste Zahnpasta Handzahnbürsten elektrische Zahnbürst

Dental Material Elastomeric impression materials Consistency Strain-in-compression test ISO 4823 Joachim Wilhelm Engineering

- Simple, intuitive operation through  procedure templates, minimum
  Operator training
- Dust and splash-proof touchscreen
- Modern Design & Technology: linear guidance technology with stepper motor
  ensure high precision in distance and speed
- Documented exporting the resulting data with test parameters and details
  to samples on USB in CSV format
- Two user access levels: supervisor and operator.
  Access level can be protected with a password
- Independent, fully operational system,
  requires no computer and no software installation


This test device automatically measures the deformation under pressure of elastomer impression materials.
Test loads and process time are controlled automatically. The deformation under pressure E is measured, calculated and displayed on the touch screen.
The test parameters can be changed via the input keyboard.

The automation of the test sequence and the functional structure of the software allows an easy operation. Thees reduce the user impact and improve the reproducibility of the results.

Options Software

Optionally we offer a software to enter product-specific data (manufacturer, batch, composition, basic investigation, etc.) and data for testing (tester, date, location, etc.). This enables a documented and verifiable investigation. The results can be print  or saved as a text file on a storage device.


Dimension (W, D, H) ca.   200, 300, 300 mm Weight   15 kg Display   4,3'' Power Supply

115/230 (50/60 Hz)


accuracy +- 0,1 N

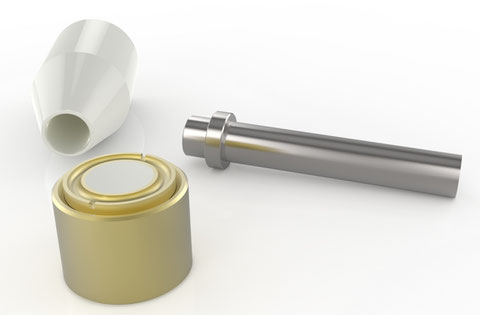

Accessories Probe Preperation

Dental Material Elastomeric impression materials Consistency Strain-in-compression test ISO 4823 Joachim Wilhelm Engineering

 Compression Test

- Form for the preparation of the test specimens
- Glass or metal plates, about 50x50x3 mm
  Consistency Test
- Doser for preparing the specimens for the consistency test

Scope of Delivery

1    Test Device
1    Power Cord CEE 16A (5 m)
1    Operating Instruction


Stain-in-compression automatic            410-010
Accessories Probe Preperation 410-050

Conditions of Delivery

Delivery: EXW
Shipping time: by arrangement

Technical changes reserved.

The illustrations may differ from the actual equipment.

All data without obligation and not-binding.
