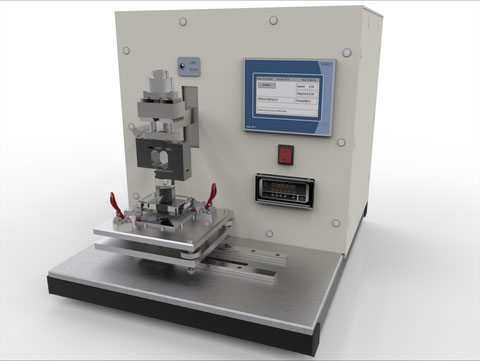

Denture Adhesives Test

Oral Care Prüfung Test Equipment Zahnbürste Zahnnseide Dentalwerkstoffe Dentalinstrumente Brillen Spritzen Toothpaste manual Toothbrush Powerbrush Toothcleaning interproximal Brush Test Euquipment Zahnbürste Zahnpasta Handzahnbürsten elektrische Zahnbürst

Test Equipment Prüfsysteme Toothbrush dental Material Prüfmittel Mundpflege Zahnbürste Zahnpasta interdentale Bürsten Zahnseide Dentalwerkstoff Elastomere Prothesen Abformmasse Amalgam Prothesen Haftmittel Keramik Dubliermasse Joachim Wilhelm Engineering

- simple, intuitive operation through  procedure templates, minimum
  Operator training
- Dust and splash-proof touchscreen
- Modern Design & Technology: linear guidance technology
  with stepper motor ensure high precision in distance and speed
- Documented exporting the resulting data with test parameters and details
  to samples on USB in CSV format
- Two user access levels: supervisor and operator.
  Access level can be protected with a password
- Independent, fully operational system,
  requires no computer and no software installation

Function

The ISO 10873 describes methods for testing the adhesion and consistency of denture adhesives.

The denture adhesive it put between two plates consist of polymethylmethacrylate and the specimens close at a crosshead speed of 5 mm / min. The sample is load with 9.8 N for 30 s. The test specimens are pulled apart and the max. Force is  measured. The adhesive strength is calculated as force per unit area and must above 50 kPa.
This investigation is carried out fully automatic and calculated from the maximum tensile adhesion in kPa.
The test can be selected with the keypad for the adhesive type: Class 1: powder, Class 2: cream.Furthermore, the cross-head speed and load period can be adjusted.

The automation of the test sequence and the functional structure of the software allows an easy operation. Thees reduce the user impact and improve the reproducibility of the results.

Optionen

The test force is generated by a weight. We are also produce different weights for different test loads for you.

Spezification

Load   9,8 N (optional 5-20 N)
Speed   1 – 20 mm/min
Load max.   20 N
Dimension (W,D,H)   ca.    250,250,350 mm
Weight   15 kg
Power Supply   115/230 (50/60 Hz)


Ordering

Adhesion Test:
Test Device   422-010
pressure-sensitive Shaft   422-020
Sample Holder I   422-030
Sample Holder II   422-040
Consistency Test::
Pressure-sensitive Shaft   422-050
poly (methyl methacrylate) plate (PMMA)   422-060


Scope of Delivery

Adhesion Test:
1   Test Device
10  pressure-sensitive Shaft
10  sample holder I
10  sample holder II

Consistency Test:
10  Pressure-sensitive Shaft
10  poly (methyl methacrylate) plate (PMMA)

Conditions of Delivery

Delivery: EXW
Shipping time: by arrangement

Technical changes reserved.

The illustrations may differ from the actual equipment.

All data without obligation and not-binding.
