Working Time Test

Oral Care Prüfung Test Equipment Zahnbürste Zahnnseide Dentalwerkstoffe Dentalinstrumente Brillen Spritzen Toothpaste manual Toothbrush Powerbrush Toothcleaning interproximal Brush Test Euquipment Zahnbürste Zahnpasta Handzahnbürsten elektrische Zahnbürst

Verarbeitung Abbindezeit ISO 4049 6874 Setting Time - manuel Joachim Wilhelm Engineering

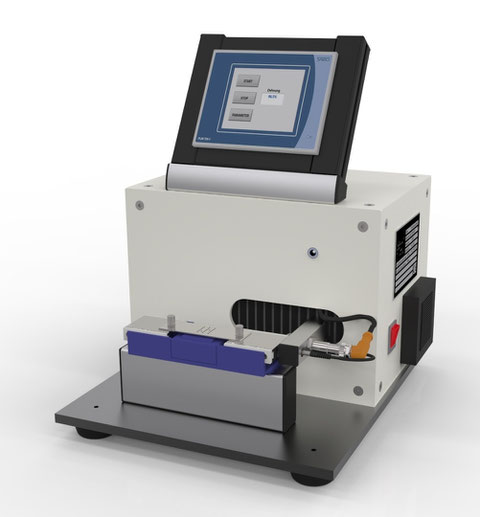

This test device determines the working time of elastomeric impression materials.
The material is put between two plates and 1 plate is moved. After tying of the material, an elastic recovery occurs, which is measured by a displacement sensor.
smooth-running of the carrier and the test is performed complete automatic.
The software automatically determines the processing time.

The automation of the test sequence and the functional structure of the software allow an easy operation. This reduce the
user influence on the results and improve the reproducibility of the results.

- Simple, intuitive operation through  procedure templates, minimum
  Operator training
- Dust and splash-proof touchscreen
- Modern Design & Technology: linear guidance technology with stepper motor
  ensure high precision in distance and speed
- Documented exporting the resulting data with test parameters and details
  to samples on USB in CSV format

- Independent, fully operational system,
  requires no computer and no software installation

- User access with password
- two user access levels: administrator and server
   Access level can be password protected
- Output of the results + Product and test information
  on a printer via RS232


Dimension (W,D,H) ca. 400, 100, 50 mm
Weight   2,5 kg
Traverse   20 mm
Power Supply   115/230 (50/60 Hz)


Device                    430-050

Scope of Delivery

1 Device
1 Operating Instruction
1 Power Cord CEE 16A (5 m)

Conditions of Delivery

Delivery: EXW
Shipping time: by arrangement

Technical changes reserved.

The illustrations may differ from the actual equipment.

All data without obligation and not-binding.
