ISO 16409 manual interdental brushes
5.3 filament retention test
The standard ISO 16409 contains an testof the Filament Retention.
The brush is moved to a hole 80 times. The brush must lose no filament.

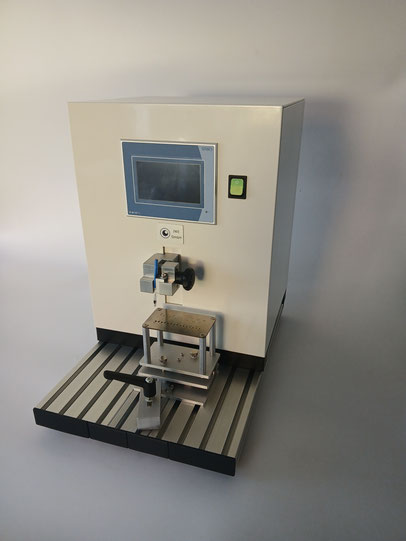

The device includes a linear motion mechanism with motor. The start and end position can be teached. The number of cycles is freely programmable.
The drive allows a constant speed for a defined test path.
2 Limit switches in the device allow checking the speed.
The jigs allow the rapid fixation of different interdental brushes. Various brackets are attached.
Spezification
| Dimension (H,W,D) ca. | 400, 260, 400 mm | |
| Weight | 15 kg | |
| Cycle Speed | 0.25 - 1 Hz | |
| Distance | 0 - 40 mm | |
| Power Supply | 115/230 (50/60 Hz) | |
| EN ISO 13849-1 Kategorie 3 und PL d. |
Options
calibration
means
308-800-1
Ordering
Device filament retention test 308-010 5.500 €
Measuring plate 308-050 850 €
Measuring plate with xy-table 308-060 1000 €
Scope of Delivery
- 1 Test device + Jig
- 1 Power Cord CEE 16A (5 m)
- 1 Operating Intruction
Conditions of Delivery
Delivery: DAP
Shipping time: by arrangement
Technical changes reserved.
The illustrations may differ from the actual equipment.
All data without obligation and not-binding.
The prices quoted are net prices.
